Tree Grate
| Material: | Low carbon steel |
| Feature: | High strength, light structure |
| Application: | Construction decorationand and walkways |
More Details
Product Description

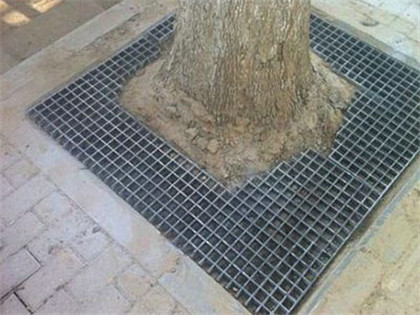

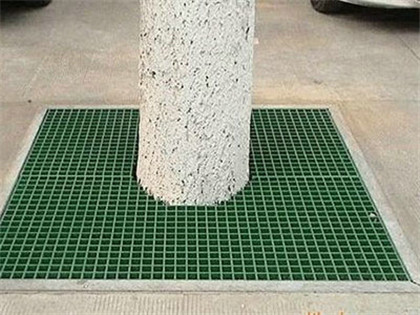

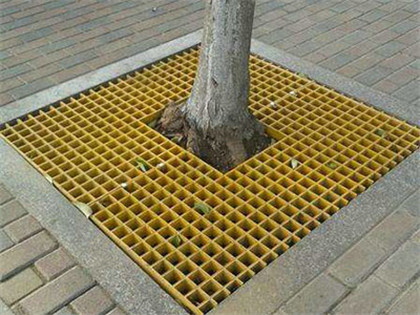

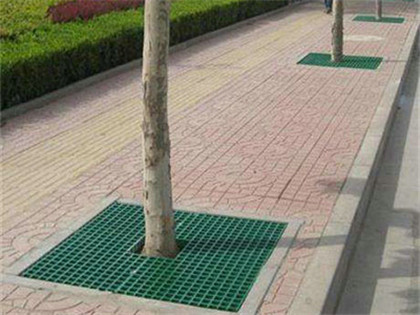

Tree grates also called tree pool cover consisting 2 to 4 pieces symmetrical boards jointed together with tree hole in the middile and several weep holes around, mainly used for landscape trees along the streets, avoiding soil erosion and beautifying the environment. Traditional tree grates are produced by cast iron plates or WPC, while our tree grates are produced by steel gratings with more merits compared with the traditional ones, like high strength, simple design, high hollow rate etc. Our steel grating tree grates are produced by bearings bars and cross bars welded together by high resistance welding machine or by manual. Different configuration and size are able to be designed and customized according to customers’ specific application.
| Material | Low carbon, middle carbon, stainless steel |
| Material Standard | GB700-88, ASTM(A36), BS4360(43A), AS3679 |
| Bearing bar size | 20*3,20*5,25*3,25*5,32*3,32*5,35*3,35*5, 40*3,40*5,45*5,50*3,50*5,55*5,60*5,65*5mm etc, |
| Bearing bar pitch | 15,20,25,30,33,35,38,40,50,60,80,90mm |
| Cross bar pitch | 24-200mm |
| Surface treatment | YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592-1987,AS1657-1985 |
| Bearing bar type | F,I ,S,IS type |
| Application | Floor walkway,industrial platform,stair tread,metal ceiling |
| Feature | Fine appearance,anti-corrosive,simple installation,light weight,high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion |
| Payment Terms | TT,L/C |
| Package | Pallets in containers packed by steel strap and worthy sea shipping,or according to the customers' requirements |
| Product capacity | 10days for a 20” |
Features of metal tree grate:
1). Simple and nice look.
2). High strength with safe use.
3). Hollow rate upto 90% providing superior drainage rate and plenty of sunshine to the tree roots and grasses.
4). Anti corrosion and fire retardant.
5). Convenient for assembly and disassembly.
6). Various configuration and size are able to be customized according to customers’ requirement.
